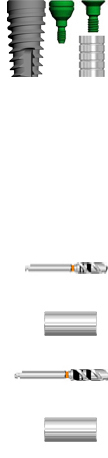

Guided Kits include: an implant, 1mm cover screw, 3mm healing abutment and a guide tube.
Click here to download the Guided Surgery Manual or click here to watch an instructional Guided Surgery Video.
Purchase guide tubes in 20 packs or more of same size and individual tubes drop to $7 per unit and 5 packs drop to $32
Important Product Information at Bottom of Page
Upgrade to the Fully Guided Keyless Kit
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| BIO Internal Hex Fully Guided Keyless Kit | GSKIH | $3519.00 | ||
| Master Cylinder for Fully Guided Kit (Cerec M Master Tube Compatible)
Recommended guide tube for all Blue Sky Plan generated guides. Requires a printed guide with a 5.34mm diameter hole. Allows for placement of up to and including 5mm implants using the Blue Sky Bio fully guided keyless kit. Cerec M Master Tube for CG2, CG1, Optiguides, and classic guides using the Blue Sky Bio fully guided keyless kit. D2 = 8mm plus implant length. ID=5.04mm OD=5.24mm Height=4mm Lip=0.5mm of total height | Tube524-504-4L | $7.00 | ||
| Master Cylinder for Fully Guided Kit (Cerec L Master Tube Compatible)
Recommended guide tube for all Blue Sky Plan generated guides. Requires a printed guide with a 6.0mm diameter hole. Allows for placement of up to and including 5mm implants using the Blue Sky Bio fully guided keyless kit. Cerec L Master Tube for CG2, CG1, Optiguides, and classic guides using the Blue Sky Bio fully guided keyless kit. D2 = 8mm plus implant length. ID=5.04mm OD=5.9mm Height=4.5mm Lip=0.5mm of total height | Tube59-504-45L | $7.00 | ||
3.7mm Implant - 3.5mm Platform (for Cerec S)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKCSIH3708 | $134.00 | ||
| 10mm Internal Hex Implant Guided Kit | GKCSIH3710 | $134.00 | ||
| 11.5mm Internal Hex Implant Guided Kit | GKCSIH3711 | $134.00 | ||
| 13mm Internal Hex Implant Guided Kit | GKCSIH3713 | $134.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKCSIH3716 | $134.00 | ||
| Additional Guide Tube (order if needed) | TUBE44-315 | $9.00 | ||
| Final Drill for the 3.7mm Implant, short (order if needed) | DRILLN35S | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILLN35S (order if needed) | CDRN35S | $12.00 | ||
| Final Drill for the 3.7mm Implant, long (order if needed) | DRILLN35L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILLN35L (order if needed) | CDRN35L | $12.00 | ||
3.7mm Implant - 3.5mm Platform (For Nobel Compatible 5mm Master Tube)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKNMIH3708 | $133.00 | ||
| 10mm Internal Hex Implant Guided Kit | GKNMIH3710 | $133.00 | ||
| 11.5mm Internal Hex Implant Guided Kit | GKNMIH3711 | $133.00 | ||
| 13mm Internal Hex Implant Guided Kit | GKNMIH3713 | $133.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKNMIH3716 | $133.00 | ||
| Additional Guide Tube (order if needed) | TUBE49-315 | $9.00 | ||
| Final Drill for the 3.7mm Implant, short (order if needed) | DRILLN35S | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILLN35S (order if needed) | CDRN35S | $12.00 | ||
| Final Drill for the 3.7mm Implant, long (order if needed) | DRILLN35L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILLN35L (order if needed) | CDRN35L | $12.00 | ||
4.1mm Implant - 3.5mm Platform (for Cerec S)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKCSIH4108 | $134.00 | ||
| 10mm Internal Hex Implant Guided Kit | GKCSIH4110 | $134.00 | ||
| 11.5mm Internal Hex Implant Guided Kit | GKCSIH4111 | $134.00 | ||
| 13mm Internal Hex Implant Guided Kit | GKCSIH4113 | $134.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKCSIH4116 | $134.00 | ||
| Additional Guide Tube (order if needed) | TUBE44-379 | $9.00 | ||
| Final Drill for 4.1mm Implant, short (order if needed) | DRILL3630S | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL3630S (order if needed) | CDR3630S | $12.00 | ||
| Final Drill for 4.1mm Implant, long (order if needed) | DRILL3630L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL3630L (order if needed) | CDR3630L | $12.00 | ||
4.1mm Implant - 3.5mm Platform (For Nobel Compatible 5mm Master Tube)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKNMIH4108 | $133.00 | ||
| 10mm Internal Hex Implant Guided Kit | GKNMIH4110 | $133.00 | ||
| 11.5mm Internal Hex Implant Guided Kit | GKNMIH4111 | $133.00 | ||
| 13mm Internal Hex Implant Guided Kit | GKNMIH4113 | $133.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKNMIH4116 | $133.00 | ||
| Additional Guide Tube (order if needed) | Tube49-379 | $9.00 | ||
| Final Drill for 4.1mm Implant, short (order if needed) | DRILL3630S | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL3630S (order if needed) | CDR3630S | $12.00 | ||
| Final Drill for 4.1mm Implant, long (order if needed) | DRILL3630L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL3630L (order if needed) | CDR3630L | $12.00 | ||
4.7mm Implant - 3.5mm Platform Switched (for Cerec M)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKCMIHPS4708 | $133.00 | ||
| 10mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKCMIHPS4710 | $133.00 | ||
| 11.5mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKCMIHPS4711 | $133.00 | ||
| 13mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKCMIHPS4713 | $133.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKCMIHPS4716 | $133.00 | ||
| Additional Guide Tube (order if needed) | Tube53-427 | $9.00 | ||
| Final Drill for 4.7mm Implant, short (order if needed) | DRILL4438S | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438S (order if needed) | CDR4438S | $12.00 | ||
| Final Drill for 4.7mm Implant, long (order if needed) | DRILL4438L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438L (order if needed) | CDR4438L | $12.00 | ||
4.7mm Implant - 3.5mm Platform Switched (for Cerec L)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKCLIHPS4708 | $133.00 | ||
| 10mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKCLIHPS4710 | $133.00 | ||
| 11.5mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKCLIHPS4711 | $133.00 | ||
| 13mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKCLIHPS4713 | $133.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKCLIHPS4716 | $133.00 | ||
| Additional Guide Tube (order if needed) | TUBE59-427 | $9.00 | ||
| Final Drill for 4.7mm Implant, short (order if needed) | DRILL4438S | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438S (order if needed) | CDR4438S | $12.00 | ||
| Final Drill for 4.7mm Implant, long (order if needed) | DRILL4438L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438L (order if needed) | CDR4438L | $12.00 | ||
4.7mm Implant - 3.5mm Platform Switched (For Nobel Compatible 5mm Master Tube)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKNMIHPS4708 | $133.00 | ||
| 10mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKNMIHPS4710 | $133.00 | ||
| 11.5mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKNMIHPS4711 | $133.00 | ||
| 13mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKNMIHPS4713 | $133.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKNMIHPS4716 | $133.00 | ||
| Additional Guide Tube (order if needed) | TUBE49-427 | $9.00 | ||
| Final Drill for 4.7mm Implant, short (order if needed) | DRILL4438S | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438S (order if needed) | CDR4438S | $12.00 | ||
| Final Drill for 4.7mm Implant, long (order if needed) | DRILL4438L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438L (order if needed) | CDR4438L | $12.00 | ||
4.7mm Implant - 3.5mm Platform Switched (For Nobel Compatible 6mm Master Tube)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKNMWIHPS4708 | $133.00 | ||
| 10mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKNMWIHPS4710 | $133.00 | ||
| 11.5mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKNMWIHPS4711 | $133.00 | ||
| 13mm Internal Hex Implant Guided Kit - Temporarily Unavailable | GKNMWIHPS4713 | $133.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKNMWIHPS4716 | $133.00 | ||
| Additional Guide Tube (order if needed) | TUBE609-427 | $9.00 | ||
| Final Drill for 4.7mm Implant, short (order if needed) | DRILL4438S | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438S (order if needed) | CDR4438S | $12.00 | ||
| Final Drill for 4.7mm Implant, long (order if needed) | DRILL4438L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438L (order if needed) | CDR4438L | $12.00 | ||
4.7mm Implant - 4.5mm Platform (for Cerec M)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKCMIH4708 | $133.00 | ||
| 10mm Internal Hex Implant Guided Kit | GKCMIH4710 | $133.00 | ||
| 11.5mm Internal Hex Implant Guided Kit | GKCMIH4711 | $133.00 | ||
| 13mm Internal Hex Implant Guided Kit | GKCMIH4713 | $133.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKCMIH4716 | $133.00 | ||
| Additional Guide Tube (order if needed) | TUBE53-427 | $9.00 | ||
| Final Drill for 4.7mm Implant, short (order if needed) | DRILL4438S | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438S (order if needed) | CDR4438S | $12.00 | ||
| Final Drill for 4.7mm Implant, long (order if needed) | DRILL4438L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438L (order if needed) | CDR4438L | $12.00 | ||
4.7mm Implant - 4.5mm Platform (for Cerec L)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKCLIH4708 | $133.00 | ||
| 10mm Internal Hex Implant Guided Kit | GKCLIH4710 | $133.00 | ||
| 11.5mm Internal Hex Implant Guided Kit | GKCLIH4711 | $133.00 | ||
| 13mm Internal Hex Implant Guided Kit | GKCLIH4713 | $133.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKCLIH4716 | $133.00 | ||
| Additional Guide Tube (order if needed) | TUBE59-427 | $9.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438S (order if needed) | CDR4438S | $12.00 | ||
| Final Drill for 4.7mm Implant, long (order if needed) | DRILL4438L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438L (order if needed) | CDR4438L | $12.00 | ||
4.7mm Implant - 4.5mm Platform (For Nobel Compatible 5mm Master Tube)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKNMIH4708 | $133.00 | ||
| 10mm Internal Hex Implant Guided Kit | GKNMIH4710 | $133.00 | ||
| 11.5mm Internal Hex Implant Guided Kit | GKNMIH4711 | $133.00 | ||
| 13mm Internal Hex Implant Guided Kit | GKNMIH4713 | $133.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKNMIH4716 | $133.00 | ||
| Final Drill for 4.7mm Implant, short (order if needed) | DRILL4438S | $79.00 | ||
| Final Drill for 4.7mm Implant, long (order if needed) | DRILL4438L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438L (order if needed) | CDR4438L | $12.00 | ||
4.7mm Implant - 4.5mm Platform (For Nobel Compatible 6mm Master Tube)
| Size | Part # | Price | Qty. | |
|---|---|---|---|---|
| 8mm Internal Hex Implant Guided Kit | GKNMWIH4708 | $133.00 | ||
| 10mm Internal Hex Implant Guided Kit | GKNMWIH4710 | $133.00 | ||
| 11.5mm Internal Hex Implant Guided Kit | GKNMWIH4711 | $133.00 | ||
| 13mm Internal Hex Implant Guided Kit | GKNMWIH4713 | $133.00 | ||
| 16mm Internal Hex Implant Guided Kit | GKNMWIH4716 | $133.00 | ||
| Additional Guide Tube (order if needed) | Tube609-427 | $9.00 | ||
| Final Drill for the 4.7mm Implant, short (order if needed) | DRILL4438S | $79.00 | ||
| Final Drill for the 4.7mm Implant, long (order if needed) | DRILL4438L | $79.00 | ||
| BIO | Cut Shank Sleeve for DRILL4438L (order if needed) | CDR4438L | $12.00 | ||
Guided Kits include: an implant, 1mm cover screw, 3mm healing abutment and a guide tube.
Shank sleeves are inserted onto the drill shaft prior to inserting the drill into the hand piece. The sleeve will enlarge the drill shaft to match the diameter width of the cutting edge.
Click here to download the Guided Surgery Manual or click here to watch an instructional Guided Surgery Video.
Purchase guide tubes in 20 packs or more of same size and individual tubes drop to $7 per unit and 5 packs drop to $32
