Important Product Information at Bottom of Page
|MobileX X-Ray Generator (including 5 free Blue Sky Plan STL exports)|
A complimentary 3-month dosimeter is included with one purchase of the MobileX. See details below.
|Purchase 3 or more MobileX units for $3,500 a unit||MXXR3||$3500.00|
|X-Ray Sensor: Duraray USB Size 1 (download sensor application at bottom of page)||02HAM15102||$2700.00|
|X-Ray Sensor: Duraray USB Size 2 (download sensor application at bottom of page)||02HAM15302||$2900.00|
|X-Ray Sensor: QuickRay Size 1,||02E2V14400||$3995.00|
|X-Ray Sensor: QuickRay Size 2||02E2V14500||$4995.00|
|Trigger Grip (Only compatible with MobileX)||MX-TG||$499.00|
|Wall Mount Holder (for size 1 & 2 sensors)||06EBA33600||$25.00|
|6 Ft. USB Extension Cord 3.0||06MON34501||$12.00|
|Sensor Sheaths Size 1 & 2 (500 per box)||1502GPS63601||$45.00|
-Up to 400 X-rays on one charge
Features & Specifications
|X-ray Generator||Type: High Frequency Inverter|
|X-ray Tube||Latest Toshiba Technology
Tube Voltage: 70KV DC
Tube Current: 2mA
Anode Type: Stationary
Anode Angle: 12.5
Focal Spot: 0.4×0.4 mm
|X-ray Control||Exposure time from 0.01 to 2.0 sec (0.01 sec step)|
|Power Requirement||12.6 VDC 1.5A|
|Dimensions||6.5″ (w) x 6.1″ (H) x 2.4″ (D)|
|Weight||4.6 lbs including battery, shield|
Duraray X-Ray sensors resolution
|Sensor Technology||Resolution (lp/mm)||Lines/Col|
|Size 1 CMOS||13||1,300x1,700|
|Size 2 CMOS||10||1,000x1,500|

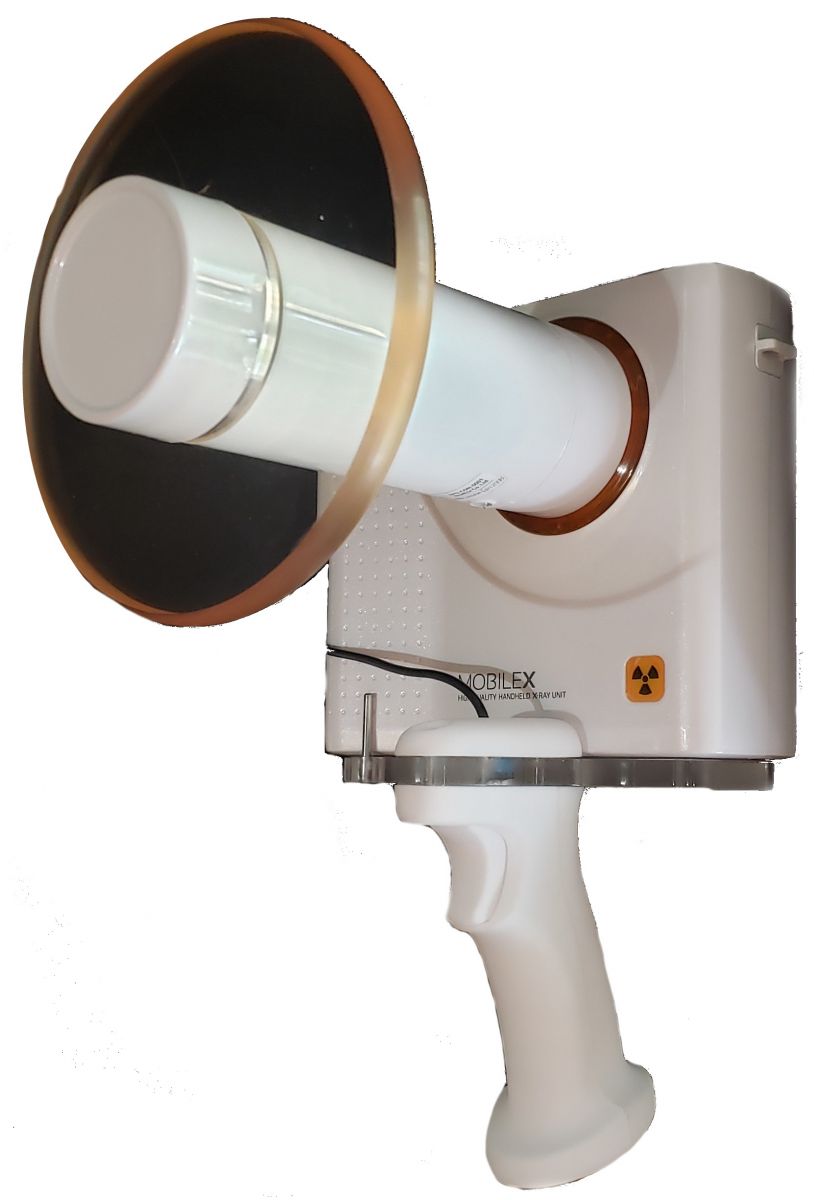

The MobileX handheld portable x-ray generator produces significantly less radiation than wall mount units. Ideal for instances such as Pedo, Endo or Oral Surgery or for offsite purposes when the operator must be in the room or near the patient during exposure.
Complete kit includes MobileX unit, power supply with cord, USB card manual and aluminum carrying case with keys.
1 year warranty on unit.
1 year warranty on battery.
Click here to see the MobileX Brochure.
Click here to review the MobileX User manual.
Click here for MobileX warranty.
See MobileX Training Video here.
Drivers and Applications for Sensors download here.
QuickRay Setup click here.
Duraray Sensors: Direct USB, CMOS chip, cut corners, Windows compatible, 3 year warranty. Includes XCP DS fit positioner starter kit, wall mount holder, 100 ct sheaths and extension cable.
Quickray Sensors: Direct USB, CMOS chip, rounded corners, Windows compatible, 2 year warranty. Includes XCP DS fit positioner starter kit, wall mount holder, 100 ct sheaths and extension cable.
Warranty and technical support offered by Denterprise International, Inc. 877-509-3180
IN ORDER TO ACTIVATE YOUR DOSIMETER, YOU MUST SEND AN EMAIL TO PRO.OFFICE@LANDAUER.COM. PLEASE REFERENCE CUSTOMER NUMBER 1467898. YOU WILL BE ASKED TO COMPLETE AN ORDER FORM AND WILL HAVE THE OPPORTUNITY TO ADD ADDITIONAL MEMBERS OF YOUR STAFF TO THE DOSIMETRY PROGRAM AT THAT TIME IF YOU WISH. AS A BLUESKY BIO CLIENT, YOU ARE ENTITLED TO DISCOUNTED PRICING FOR ANY ON-GOING LANDAUER SERVICE, SHOULD YOU CHOOSE TO CONTINUE WEARING DOSIMETERS.
